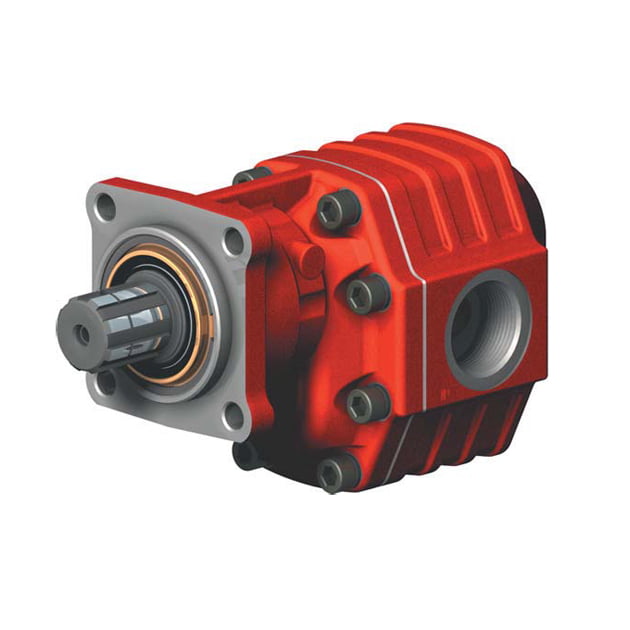

Gear pumps ISO NPH – 17 left

Gear pump ISO NPLH – 17. Direction of rotation left.
Hydraulic oil according to standards ISO/DIN.
Input – 1/2´, Exit 1 – 1/2′, Exit 2 – 1/2´, Displacement 17,04 cm3/rotation.
Max. pressure:
P1 – max. continuous pressure (100%) 290 bars
P2 – max. discontinuous pressure (max.20sec.) 315 bars
P3 – max. peak pressure (max.6sec.) 325 bars
Max. continuous speed:2500 rot./min
Max. discontinuous speed:3000 rot./min.
Min. speed:300 rot./min
