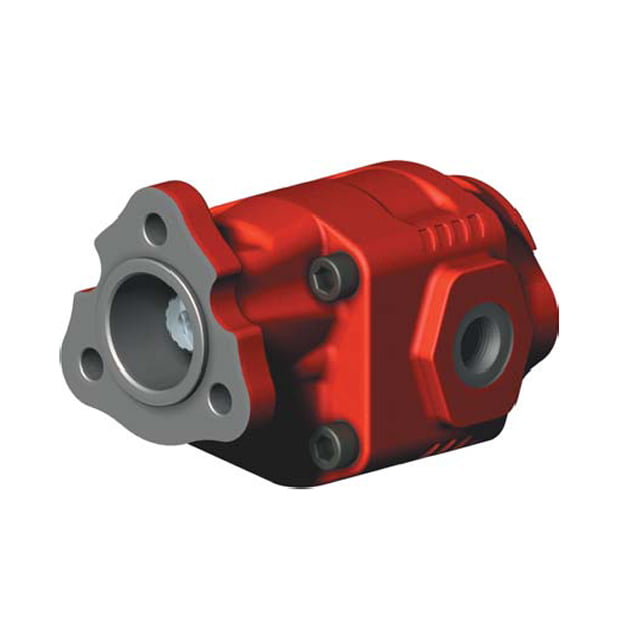

Gear pump DIN 13 NPLH – 20

Gear pump DIN 13 NPLH – 20.
Hydraulic oil according to standards DIN. Oil temperature from -10 to 35 °C.
Direction of rotation in both directions (left or right). Suction pressure 0,3 – 2 bars.
Displacement 20,123 cm3/rotation. Input 1/2′, Exit 1/2′.
Max. pressure:
P1 – max. continuous pressure (100%) 260 bars
P2 – max. discontinuous pressure (max.20sec.) 280 bars
P3 – max. peak pressure (max.6sec.) 290 bars
Max. continuous speed:2200 rot./min
Max. discontinuous speed:3000 rot./min.
Min. speed:300 rot./min
