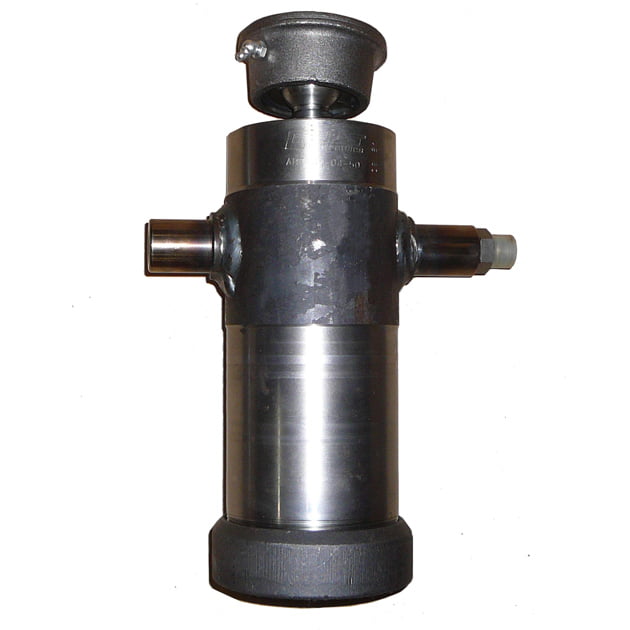

Cylinder hydraulic telescopic – typ C 3st 90-03-50 zd 900/114mm 5t

Technical specifications: chrome-plated piston, work pressure: 160-210 bars
Cylinder volume: 5,1 l
Quantity of telescopes: 3
Load capacity at 100 bar: 5000 kg

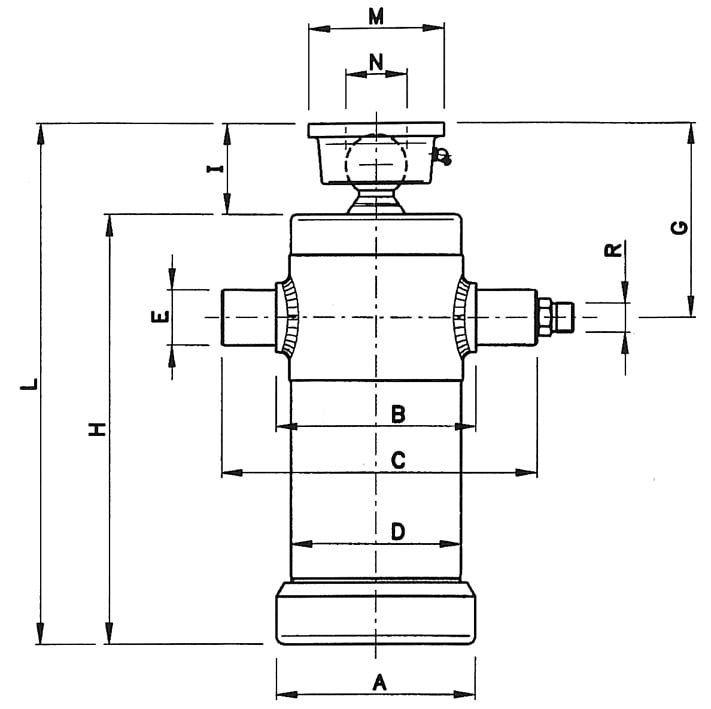

Cylinders dimensions in mm:
A = 130
B = 135
C = 220
D = 114
E = 35
G = 155
H = 380
I = 80
L = 460
M = 115
N = 55
R = 1/2
